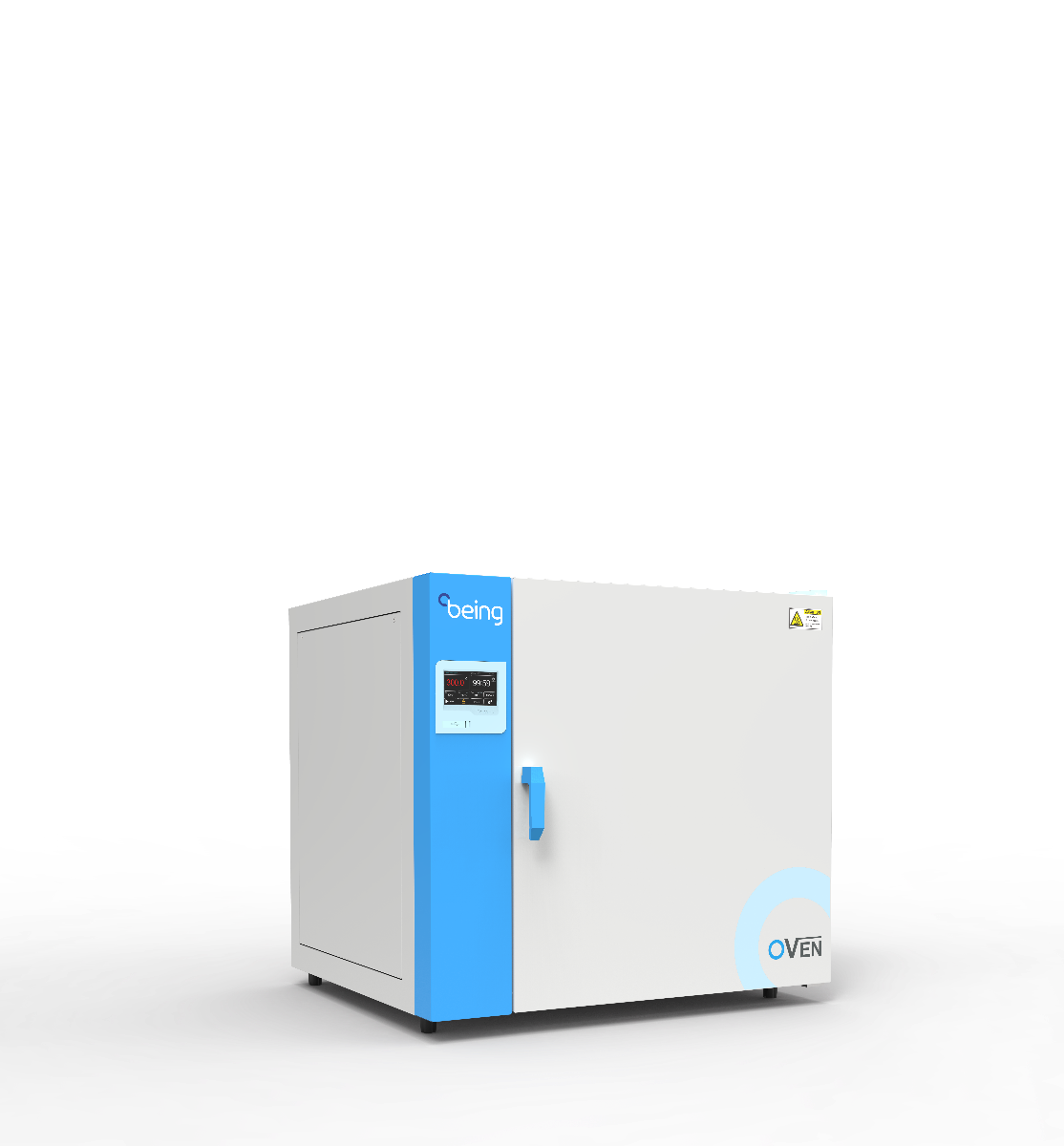

BOF Mechanical Convection Ovens
The BOF Mechanical Convection Drying Oven series distributes heat evenly inside the chamber with an integrated fan. This is ideal for drying protocols with very tight temperature requirements. The P.I.D. controller provides fast, accurate, and uniform heat displacement. Users can preset 7 periods and 9 steps for a total of 63 programs. Temperature, time and heating rate can be set and programmed at the same time. The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation. These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.
Performance and Feature
- Temperature Range:Amb+10°C - 300°C .
- P.I.D temperature controller provides accurate and reliable temperature control.
- Mechanical convection facilitates hot air circulation.
- Adjustable Exhaust Port/Vent.
- Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
- NEW color touchscreen controller, offers users to select one of 3 temperature rise linearities and can have step heating control.
Convenience
- Mechanical Convection Incubator.
- Variety of volumes to choose. ( 30 L to 400L).
- Inner chamber is made from corrosion-resistant mirror stainless steel.
- Round curved inner angle is easy to clean.
- Anti-skid shelf design, easy to operate by single hand.
- The BOF-50, BOF-120 are stackable
Safety
- Auto Start Feature after power loss/return.
- Temperature deviation alarm.
- Over temperature set point and shutdown with alarm.
- Independent over temperature limit controller for added safety.
- Over-current alarm and shutdown.
Specifications
- Temperature stability: ±0.5
- Display Resolution: 0.1
- Timer: 1~5999mins
- Work chamber material: stainless steel
- Mechanical Convection Incubator.
- Variety of volumes to choose. ( 30 L to 400L).
- Inner chamber is made from corrosion-resistant mirror stainless steel.
- Round curved inner angle is easy to clean.
- Anti-skid shelf design, easy to operate by single hand.
More Specifications
| Model Number | BOF-30 | BOF-50 | BOF-120 | BOF-200 |
| Uniformity at 100℃ | ±1.5 | ±2.5 | ±3.0 | ±3.0 |
| Heated to 100℃ | 30 mins | 30 mins | 40 mins | 40 mins |
| Packaging Dimension (inches) | 29*28*27 | 33*28*32 | 38*33*38 | 42*36*41 |
| # of shelves | 2 | 2 | 3 | 3 |
| Max # of shelves | 5 | 9 | 12 | 16 |
| Max. load per shelf | 20 Kg | 20 Kg | 20 Kg | 20 Kg |
| Internal Dimension (W×H×D) |
12.6×12.6×11.6(inch) 320×320×295(mm) |
15.8×16.3×12.2(inch) 400×415×310(mm) |
20.5×20.9×17.3(inch) 520×530×440(mm) |
25.6×25.6×19.6(inch) 650×650×500(mm) |
| External Dimension (W×H×D) |
23.3×21.2×21.6(inch) 585×540×550(mm) |
26.2×25×24.8(inch) 665×635×630(mm) |
30.9×30.1×29.7(inch) 785×765×755(mm) |
36.0×34.8×32.4(inch) 915×885×825(mm) |
| Net weight | 43 Kg | 51 Kg | 83 Kg | 112 Kg |
| Power Consumption | 1320W | 1800W | 2050W | 2500W |
| Power supply | 120V 60Hz | 120V 60Hz | 240V 60Hz | 240V 50/60Hz |
