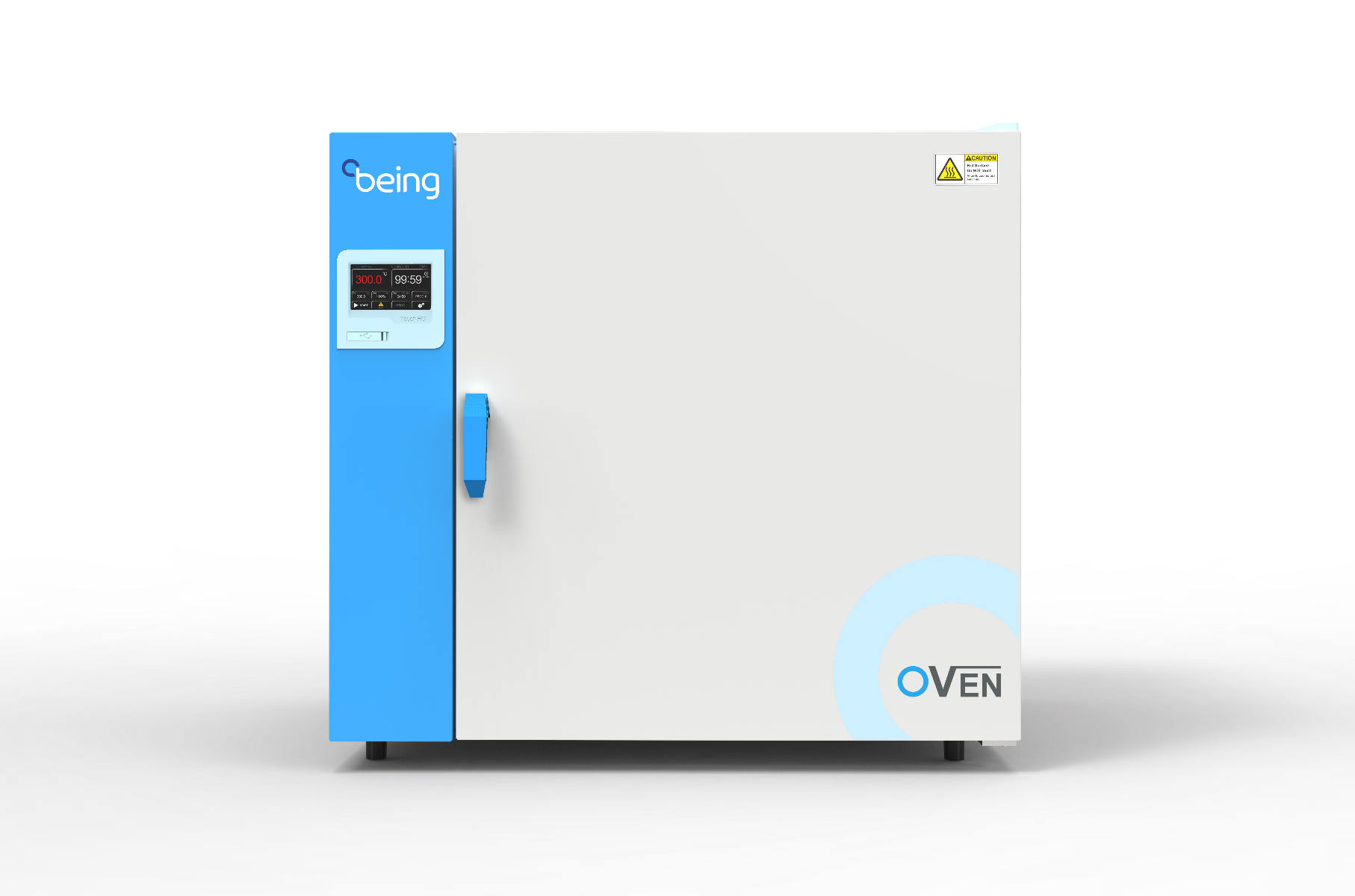

BON Natural Convection Ovens
The BON Natural Convection Drying Oven series offers low air turbulences for gentle drying and heating. This is ideal for sterilization, powder drying and high temperature storage. The P.I.D. controller provides fast, accurate, and uniform heat displacement. Users can preset 7 periods and 9 steps for a total of 63 programs. Temperature, time and heating rate can be set and programmed at the same time. The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation. These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.
Performance and Feature
- Temperature Range:Amb+10°C - 300°C .
- P.I.D temperature controller provides accurate and reliable temperature control.
- Natural convection heating allows the sample temperature to be uniform, suitable for sterilization, powder drying and high temperature storage.
- Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
Convenience
- Inner chamber is made from corrosion-resistant mirror stainless steel.
- Round curved inner angle is easy to clean.
- Anti-skid shelf design, easy to operate by single hand.
- BON-50 and BON-115 are stackable.
Safety and Peace of Mind
- Auto Start Feature after power loss/return.
- Temperature deviation alarm.
- Over temperature set point alarm.
- Over current protection.
- Independent over temperature limit controller for added safety.
Specifications
- Temperature stability: ±0.5
- Display resolution: 0.1
- Uniformity at 100℃: ±3.0
- Heated to 100℃: 40 mins
- Work chamber material: Stainless steel
- # of shelves: 2
- Max. load per shelf: 20 kg
- Timer: 1~5999mins
- Warranty: 2 years
- Certification: CSA
More Specifications
| Model Number | BON-30 | BON-50 | BON-115 | BON-200 |
| Packaging Dimension (inches) | 29*27*30 | 33*24*32 | 38*29*37 | 43*33*43 |
| Max # of shelves | 5 | 6 | 10 | 16 |
| Internal Dimension (W×H×D) |
12.6×12.6×11.8(inch) 320×320×300(mm) |
15.8×14.9×13.0(inch) 400×380×330(mm) |
20.5×19.4×17.7(inch) 520×495×450(mm) |
25.6×25.6×19.6(inch) 650×650×500(mm) |
| Extermal Dimension (W×H×D) |
23.0×22.6×23.1(inch) 585×575×588(mm) |
26.2×25×21.2(inch) 665×635×540(mm) |
30.1×30.1×25.9(inch) 785×765×660(mm) |
36.0×36.2×28.7(inch) 915×920×730(mm) |
| Net Weight | 43 Kg | 45 Kg | 74 Kg | 103 Kg |
| Power Consumption | 1200W | 1600W | 1800W | 2250W |
| Power supply | 120V 60Hz | 120V 60Hz | 240V 60Hz | 240V 50/60Hz |
| Shipping Weight (lbs) | 116.6 | 127.6 | 184.8 | 253 |
