Density / Relative Density of Light Hydrocarbons - Constant Temperature Water Bath, Koehler Instrument Company

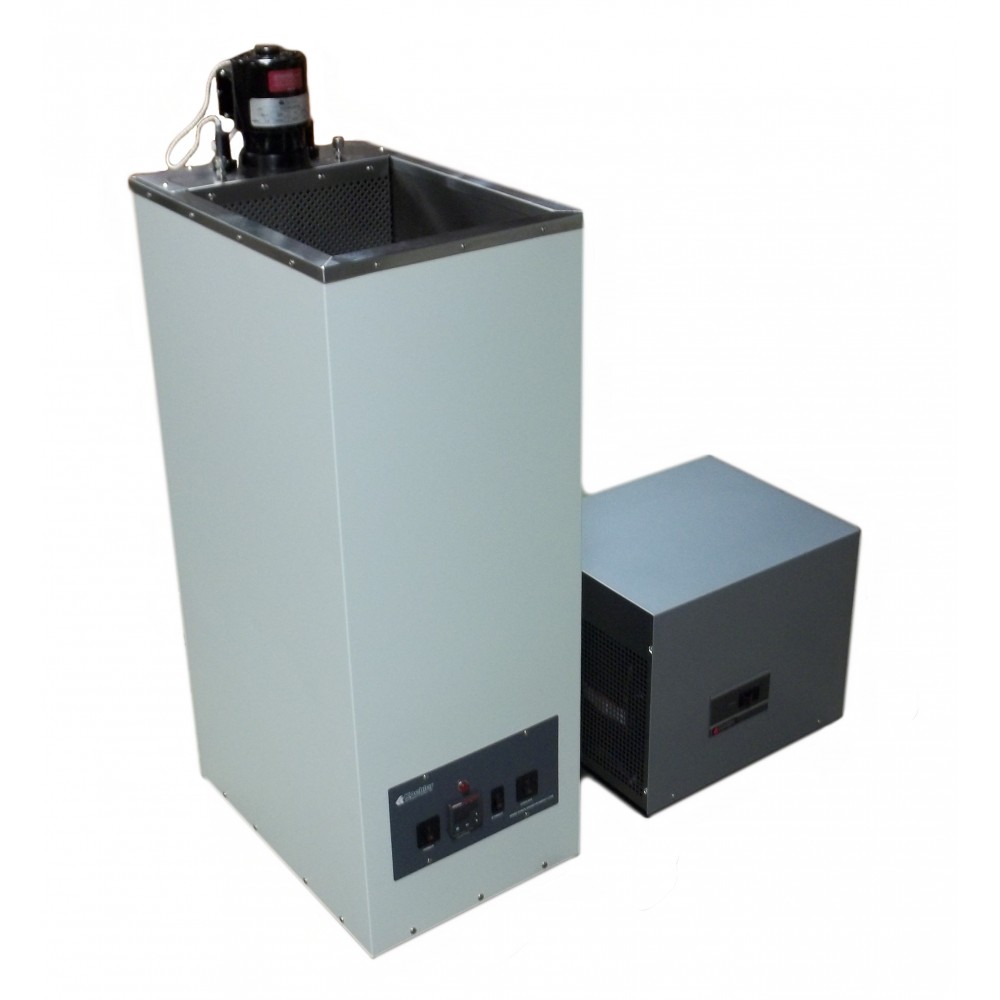

Constant Temperature Water Bath - Immerses two Pressure Hydrometer Cylinders at 60°F (15°C) for density and relative density determinations of LPG and other light hydrocarbons. Mechanically refrigerated cooling system maintains sub-ambient temperature. Thermistor activated solid state temperature controller and 750W copper immersion heater maintain bath temperature with ±0.5°F (±0.2°C) stability. A 1⁄20 hp ball bearing stirrer circulates the bath medium to assure temperature uniformity. Stainless steel tank is fiberglass insulated. Equipped with overflow standpipe/drain. Steel exterior has a durable polyurethane enamel finish.

Test Method:

Density and relative density measurements of light hydrocarbons, including LPG, are used for transportation, storage and regulatory purposes. The measurement is made by floating a thermohydrometer in a sample that has been introduced into a pressure cylinder.

Features:

• Conforms to ASTM D1657 and related specifications
• Built-in safety relief valve
• Safety relief valve: 200psi (1.4MPa)
• Mechanically refrigerated for convenient sub-ambient temperature operation

Specs:

Conforms to the specifications of: ASTM D1657; IP 235; ISO 3993

Controller Sensitivity: ±0.5°F (±0.2°C)
