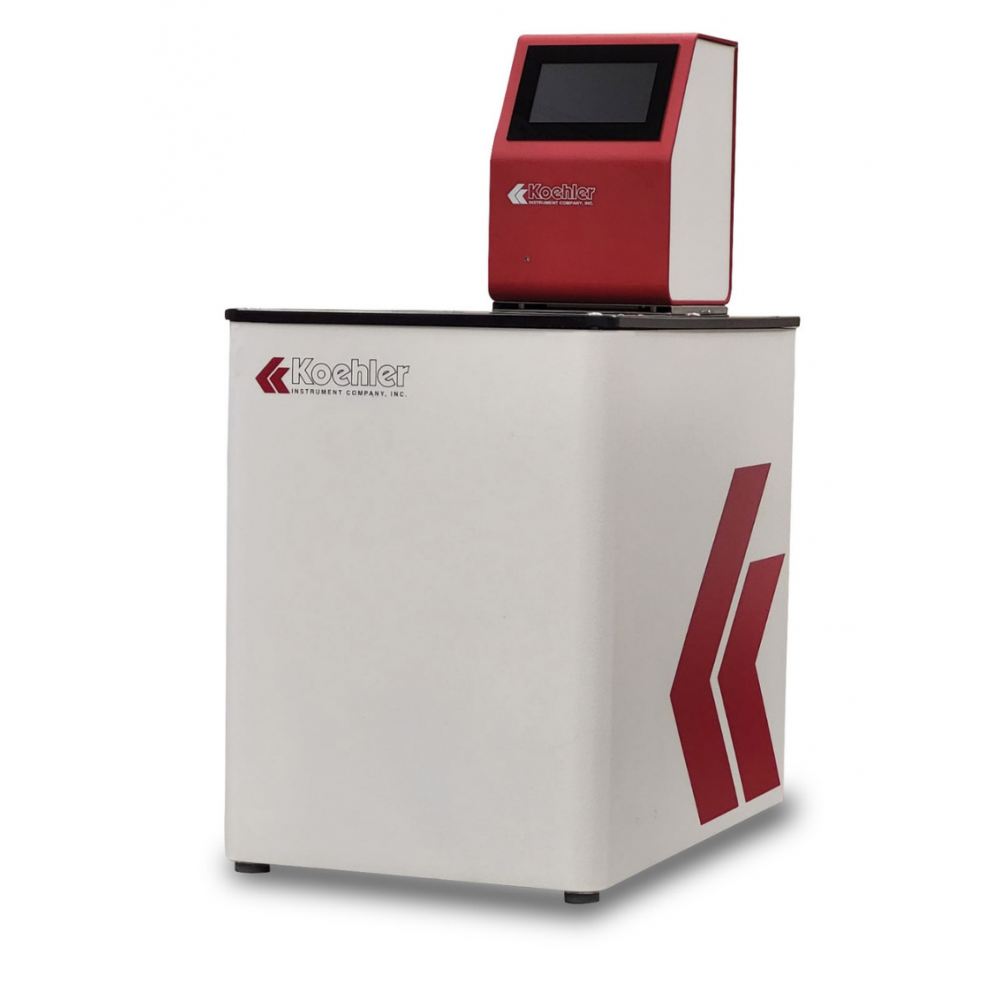

Constant Temperature Hydrometer Bath, 6 and 12-Place, Koehler Instrument Company
or call us at 1-800-727-0467
A versatile constant temperature bath designed for density/gravity determinations of petroleum products at temperatures of up to 195°F (90°C), and also for Reid Vapor Pressure determinations using immersion bombs. Digital temperature control provides quick temperature stabilization without overshoot and the unit is protected by an overtemperature control circuit that interrupts power should bath temperature exceed a programmed cut-off point.
Test Method:
For density, relative density (specific gravity) or API gravity determination of crude petroleum, liquid petroleum products and mixtures of petroleum and non-petroleum products.
Features:
- 6 and 12 position models available
- Conforms to ASTM D1298, D6074, D6158 and related specifications
Conforms to the Specifications of:
ASTM D1298, D6074, D6158; ISO 3675
Capacity:
- K64600: 12 Hydrometers
- K64610: 6 Hydrometers
Temperature:
- Range: Ambient to 221°F (105°C)
- Control Stability: Exceeds ASTM Requirements
Bath Medium:
- K64600: 16.1 gal (60.9 L) white technical oil
- K64610: 9.9 gal (37.5 L) white technical oil
Other products by Koehler Instrument Company
| Manufacturer | Koehler Instrument Company |
|---|---|
| Promo Text | N/A |
Specifications
Capacity: twelve (12) hydrometer cylinders (without base)
or Reid Vapor Pressure one-opening type bombs
Temperature Range: ambient to 250°F (121°C)
Temperature Control Stability: ±0.2°F (±0.17°C)
Heater Range: 0-2500W
Bath Medium: 19 gal (71.9L) water
Electrical Requirements
115V 50/60Hz, Single Phase, 22A
230V 50/60Hz, Single Phase, 11A
Dimensions lxwxh,in.(cm)
30x14x28 (76x36x71)
Net Weight: 64 Lbs (29.0kg)
Shipping Information
Shipping Weight: 118 lbs (53.5kg)
Dimensions: 11.4 Cu. ft.
