Economy Vacuum Oven Microprocessor Control, Sheldon Manufacturing
or call us at 1-800-727-0467

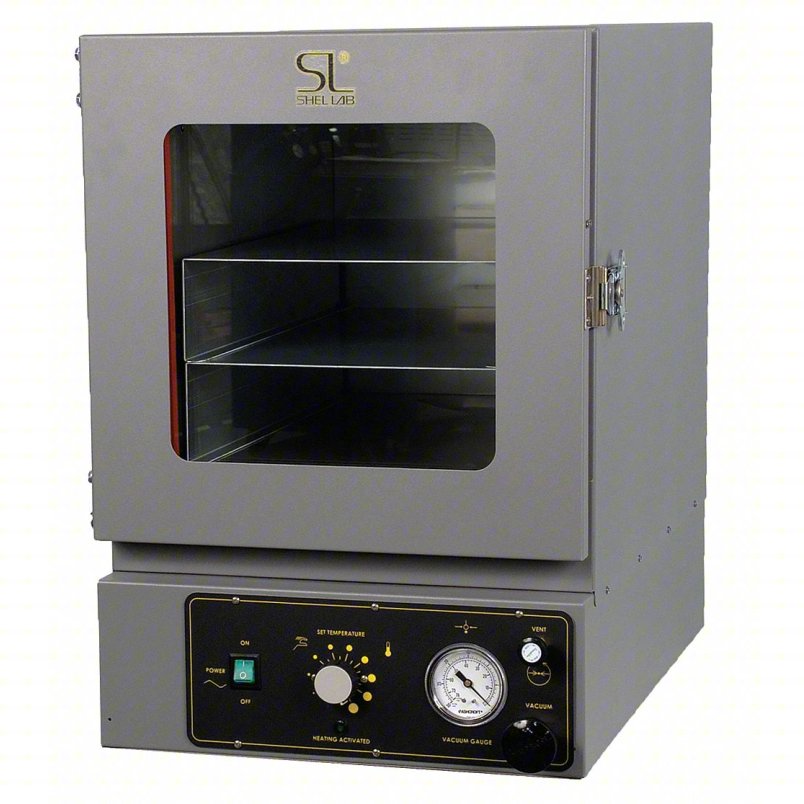

SHEL LAB® vacuum economy series ovens provide exceptional capabilities for fast and gentle drying of heat-sensitive materials. They prevent residue accumulation on products and also allow the safe drying of flammable solvents.
These units feature a radiant heating system that optimizes chamber space and provides excellent heat transfer and temperature uniformity. All SHEL LAB® vacuum ovens are built with stainless steel chambers that are easy to clean and have exceptional durability. The doors have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples. A selection of gaskets (for specific applications) and a small benchtop footprint increase the versatility of these ovens.
Other products by Sheldon Manufacturing
| Manufacturer | Sheldon Manufacturing |
|---|---|
| Promo Text | N/A |
- Heat-up (min):90 minutes at 150°C
- Shelving:2 Supplied
- Temperature Uniformity:+/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C
- Temperature Range:Ambient +/- 15°C to 210°C
- Exterior Dimensions WxDxH in. (cm):15.5 x 19 x 22.5 (39.4 x 48.3 x 57.2)
- Interior Dimensions WxDxH in. (cm):9 x 12 x 9 (22.8 x 30.4 x 22.8)
- Capacity:0.6 Cu.Ft. (17 L)
- Maximum Energy Consumption (W):600/575
