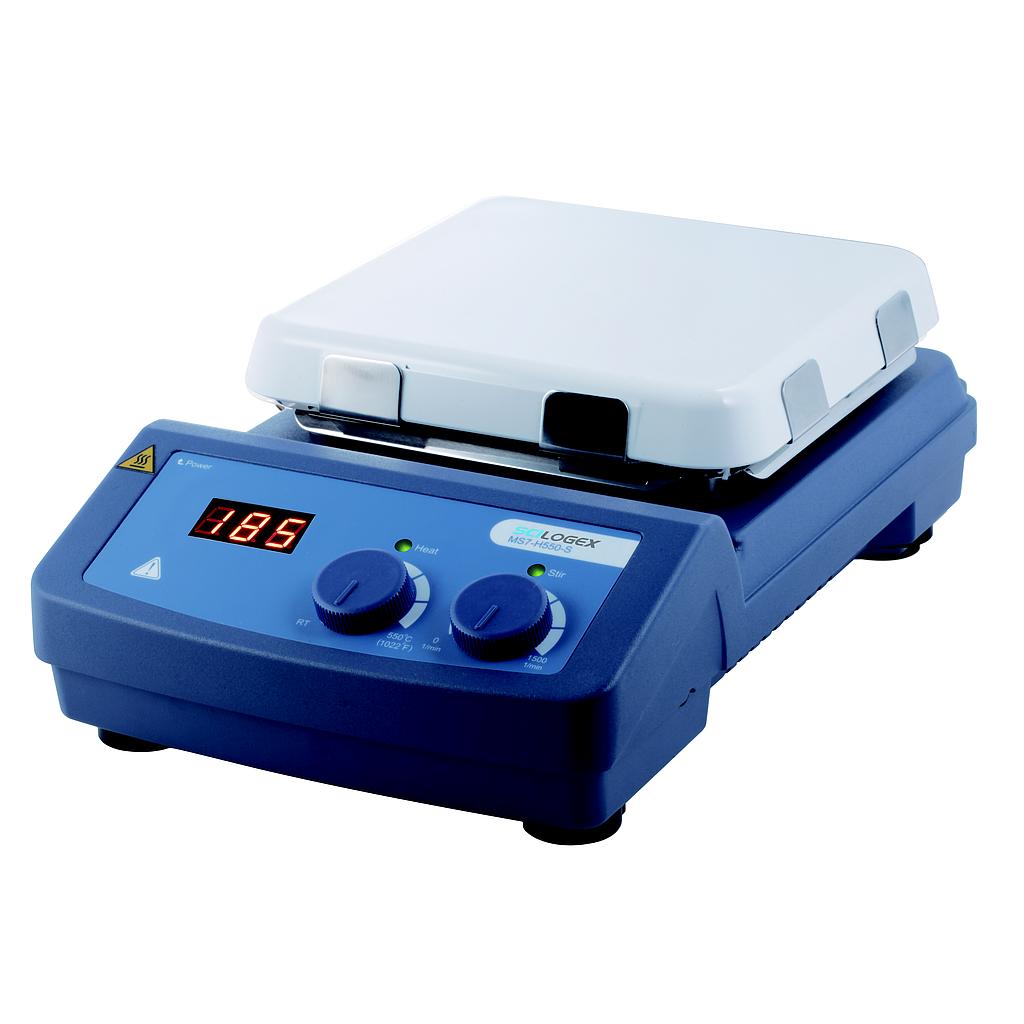

SCILOGEX SCI550-S LED Digital 7x7 Hotplate Stirrer (550ºC Max.)
SKU: 13-6208-35
or call us at 1-800-727-0467
- LED display for precise monitoring of temperature
- A wide speed range of 0 to 1500rpm
- Heat only, stir only or heat and stir together functions
- Max. Heating plate temperature 550°C
- Low-temperature stability
- Electronic speed control for constant speed even during changes in load
- External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
- High magnetic adhesion
- “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
- cTUVus approved for UL and CSA
- 2 YEAR WARRANTY
| Manufacturer | N/A |
|---|---|
| Promo Text | N/A |
| Work plate dimension[W x D] | : | 184x184mm(7 inch) |
| Work plate material | : | Glass ceramic |
| Motor type | : | Shaded pole motor |
| Motor input power | : | 15W |
| Motor output power | : | 1.5W |
| Power | : | 1030W |
| Heating output | : | 1000W |
| Voltage | : | 100-120V 60Hz |
| Stirring positions | : | 1 |
| Max. stirring quantity[H2O] | : | 10L |
| Max. magnetic bar[length] | : | 80mm |
| Speed range | : | 0-1500rpm |
| Speed display | : | Scale |
| Temperature display | : | LED |
| Heating temperature range | : | Room Temp.-550°C, increment 5°C |
| Temperature control accuracy | : | ±10°C |
| Overheating protection | : | 580°C |
| External temperature sensor | : | PT1000 (accuracy ±0.2) |
| "Hot" warning | : | 50°C |
| Protection class | : | IP21 |
| Dimension[WxDxH] | : | 215x360x112mm |
| Weight | : | 4.5kg |
| Permissible ambient temperature and humidity | : | 5-40°C, 80%RH |
