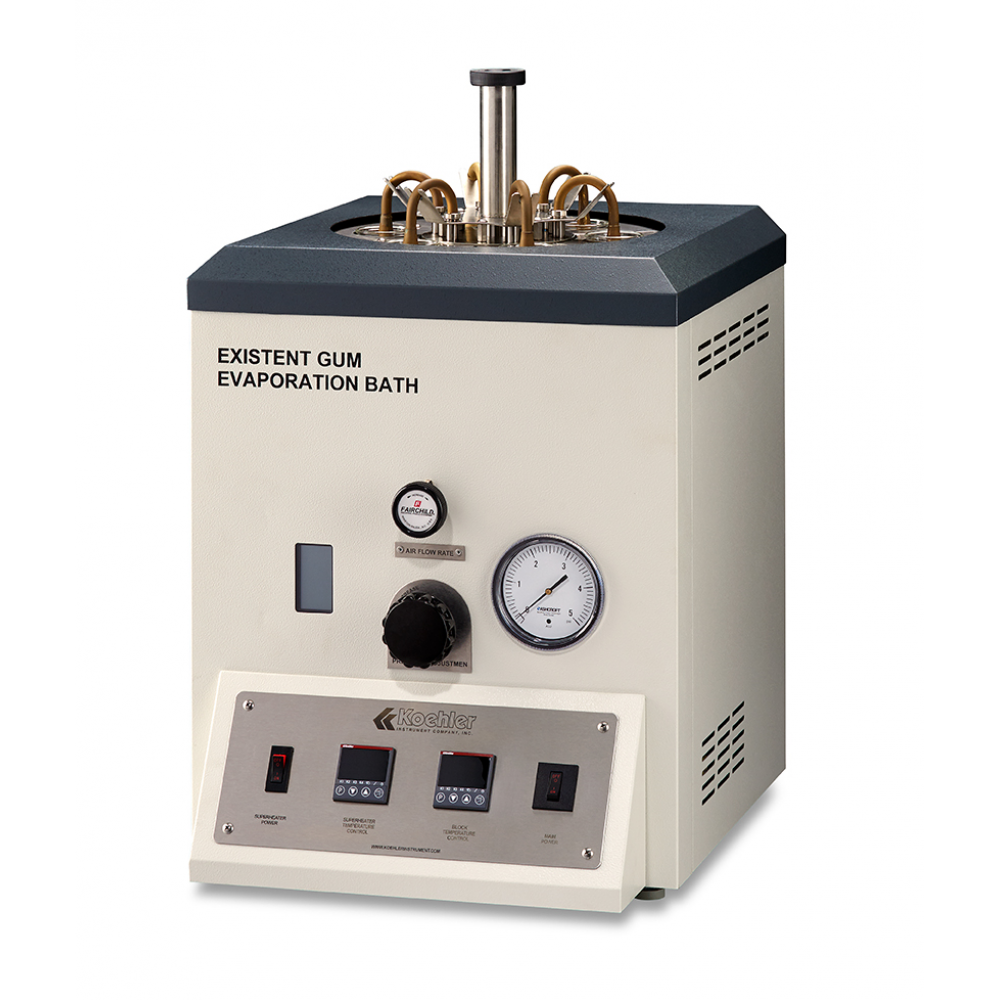

Existent Gum Evaporation Bath, Koehler Instrument Company
or call us at 1-800-727-0467
Electrically heated baths for determining existent gum in aircraft turbine fuels by steam-jet evaporation and in motor and aviation gasolines by air-jet evaporation. Fully insulated, aluminum block design assures safe, efficient high temperature operation. Equipped with air/steam pressure regulator with gauge and a digital flowmeter for adjusting air flow per ASTM specifications. Stainless steel jets deliver air or steam flow to the test wells through removable brass conical adapters. Microprocessor PID control provides quick temperature stabilization without overshoot and the bath is protected by an over-temperature control circuit that interrupts power should the bath temperature exceed a programmed cut-off point. Dual LED displays provide actual and setpoint temperature values in °C/°F format.
Three-unit bath without built-in superheater. All controls are housed in the bath cabinet. For steam-jet method testing of aircraft turbine fuels. Meets output requirements of three-unit and six-unit evaporation baths. Electrically heated for clean, efficient operation and ease of installation. Meets applicable ASME, NEC standards; UL listed, CSA approved. Electrically heated boiler provides instantaneous and reserve steam capacity for steam-jet evaporation tests. Easy to install and operate; electrical heating eliminates the need for on-site fuel combustion. Requires only a water feed source and electrical hook-up. Ruggedly constructed, with long-life industrial grade incoloy heating element. Includes a full range of safety features: automatic water level control and low water cut-off; steam safety valve; high-limit pressure cut-out with manual reset; steam pressure gauge.
Test Method:
Gum formed during fuel storage can deposit on induction system surfaces, intake valves, stems and guides. To test for gum content, a 50mL sample is evaporated in an aluminum block bath for a specified period under controlled conditions of temperature and flow of air (aviation and motor gasolines) or steam (aircraft turbine fuel).
Features:
- Conforms to ASTM D381 and related specifications
- Choice of three-unit and six-unit models
- Safety top assembly allows for easy positioning and connection of all conical adapters to the bath
- Digital flowmeter for accurate and precise air flow measurement
- Available with built-in steam superheater
- Microprocessor programmable high accuracy temperature control
- Built-in pressure regulators and air flowmeters
- Conical Brass Adapters for air/steam jets
Conforms to the specifications of: ASTM D381; IP 131; IP 540; ISO 6246; DIN 51784;
FTM 791-3302; NF M 07-004
K33780 and K33781: 3 sample beakers
Maximum Temperature: 475°F (246°C)
Temperature Control Stability: ±1°F (±0.5°C)
Bath Configuration: machined aluminum block with multiple cartridge heaters
Heater Range:
K33780 and K33781: 0-1500W
