Recorders - Flat Bed, 120mm, Linseis Series L120, Carltex International, Inc.
Manufacturer:
Carltex International, Inc.
SKU: 21-5185
or call us at 1-800-727-0467

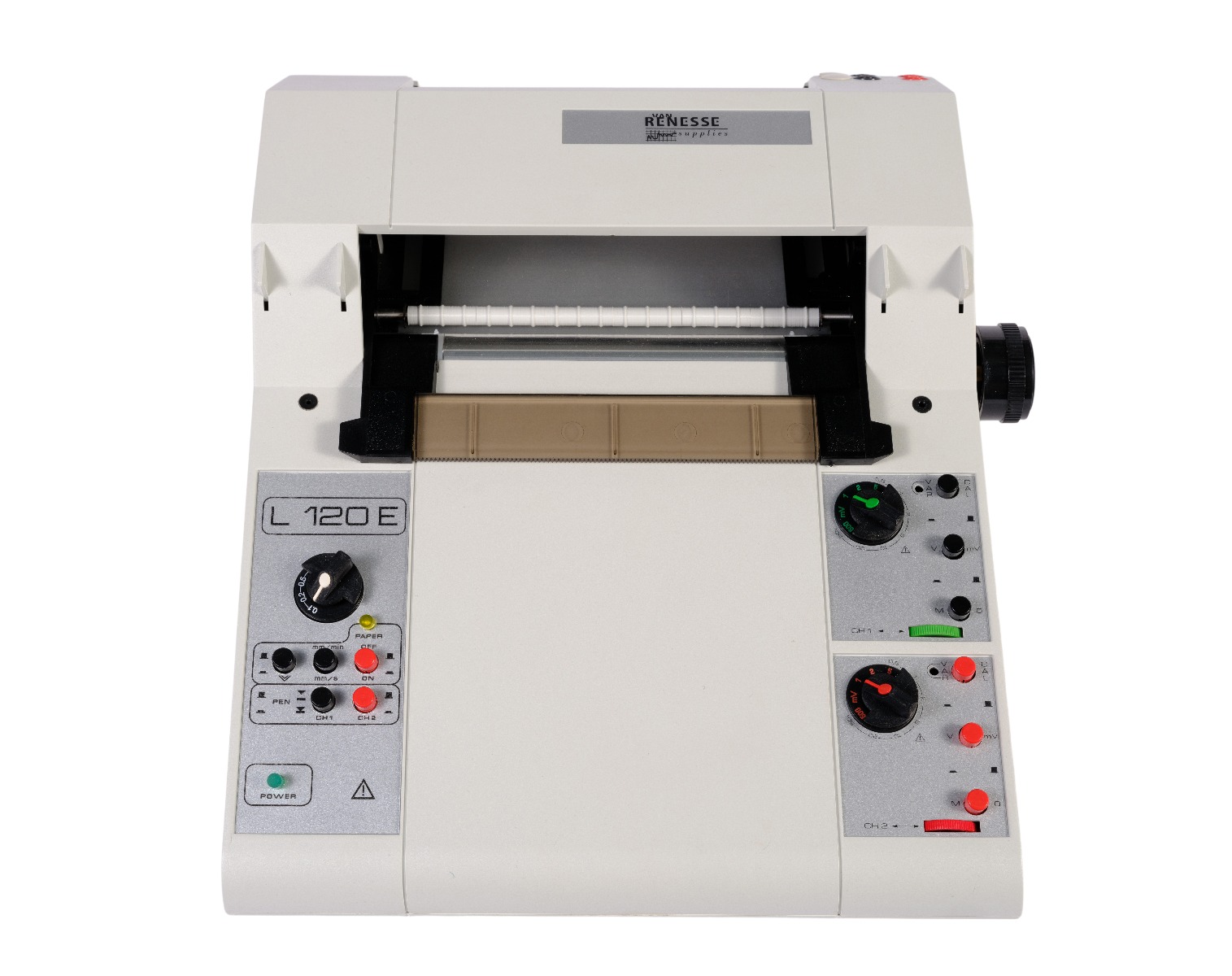

These modern design one and two channel flat bed recorders feature single chip hybrid technology recording on a 120 mm wide chart. Other features include an electric pen lift separate for each channel, external chart drive control, chart drive with grid function, a monitor output signal and long-life fiber-tip pens. Options available are counter voltage suppression for both channels and pen offset compensation. Input ranges are: 1, 2, 5, 10, 20, 50, 100, 200 mV; 0.5, 1, 2.5, 5, 10, 25, 50 volts; 5, 10, 25, 50, 100, 250, 500, 1000mA. Response time is approximately 0.12 seconds. Accuracy is: ±0.35% or ±10µV; linearity is ±0.25%; reproducibility is ±0.25%. Input impedance: DC mV ranges: greater than 30 MOhm; DC V ranges: 2 MOhm; DC mA ranges: less than 1 Ohm. Monitor output signal is 0-1 volts. With chart speeds of 0.1, 0.2, 0.5, 1, 2, 5, 10, 20 mm/s and mm/minute, and a resolution of 0.05 mm. Dimensions are 280 x 350 x 127 mm high. For operation on 115/230 volts with external selector.
