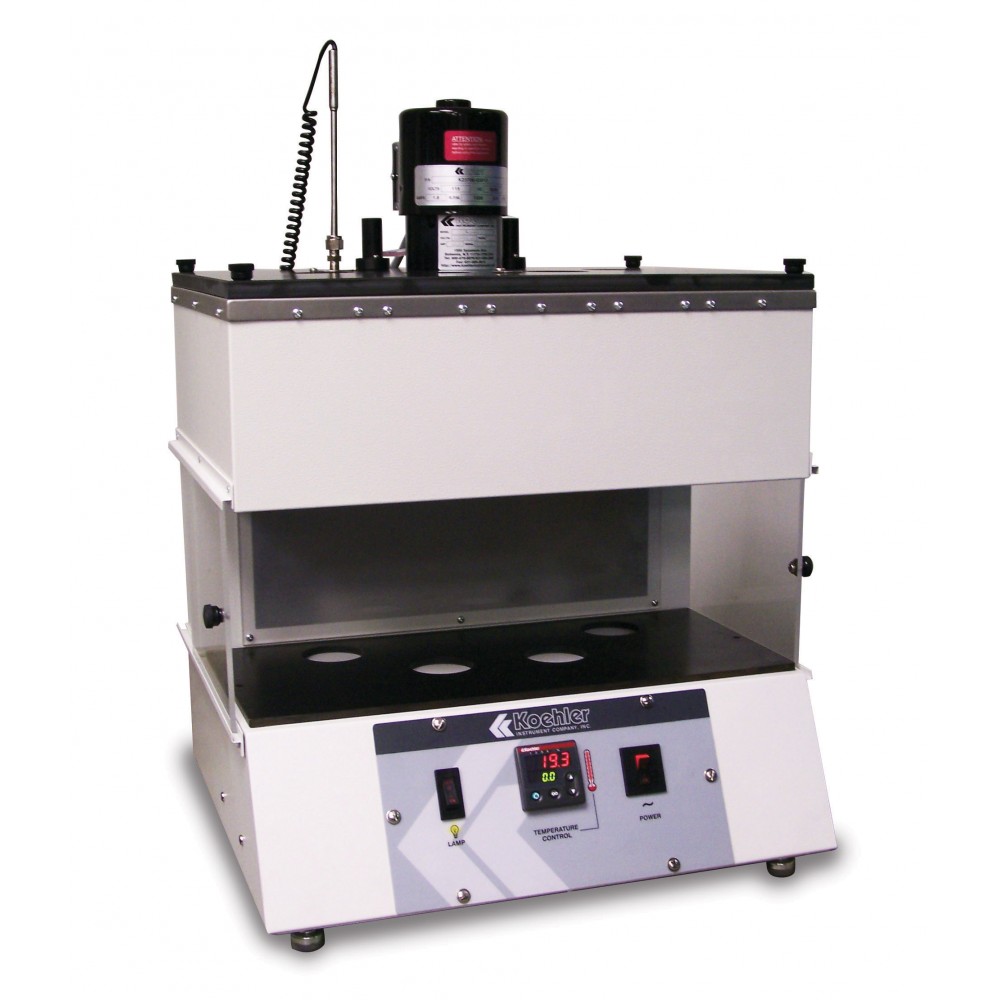

SV3000 Saybolt Viscosity Bath, Koehler Instrument Company
or call us at 1-800-727-0467
Constant temperature bath for viscosity determinations using Saybolt viscometer tubes and orifices. Microprocessor PID circuitry assures precise temperature control within ASTM specified tolerances throughout the operating range of the bath. Simple push-button controls and dual digital displays permit easy setting and monitoring of bath temperature. Two-place calibration offset is provided. Accommodates four viscometers and four 60mL receiving flasks. Sliding draft shields and a chemical-resistant alignment plate facilitate handling of the flasks, and glare-free fluorescent backlighting is provided for easy viewing of the samples. Insulated bath interior is constructed entirely of heavy gauge stainless steel. A built-in overflow pipe and drain valve simplifies filling of the bath fluid to the proper level. Chemical resistant top plate provides excellent insulation and is easily removed to allow for cleaning of the bath interior. A cooling coil for tap water or refrigerated coolant is provided for operation at near-ambient temperatures. Steel cabinet has leveling feet and a chemical resistant polyurethane-epoxy finish.
Test Method:
Determines the time required for 60mL of sample to flow through a calibrated orifice under precisely controlled conditions. Saybolt Universal Seconds (SUS) is the standard measurement for lubricants, insulating oils and lighter fuel grades, and Saybolt Furol Seconds (SFS) is used for heavier oils and bitumens.
Features:
- Microprocessor control of temperature between ambient and 240 °C (464°F)
- Four tube capacity
- Dual digital displays show setpoint and actual temperature
- Selectable temperature scale - Celsius or Fahrenheit
- Conforms to ASTM D88, D244, E102, and related specifications
Conforms to the specifications of: ASTM D88, D244, E102, AASHTO T72; FTM 791-304
Capacity: 4 viscometer tubes
Temperature Range: ambient to 464 °F (240 °C)
Temperature Stability: ± 0.05 °F (± 0.03 °C)
Bath Capacity: 5 gal (19 L)
Recommended Bath Medium: water or suitable heat transfer fluid
