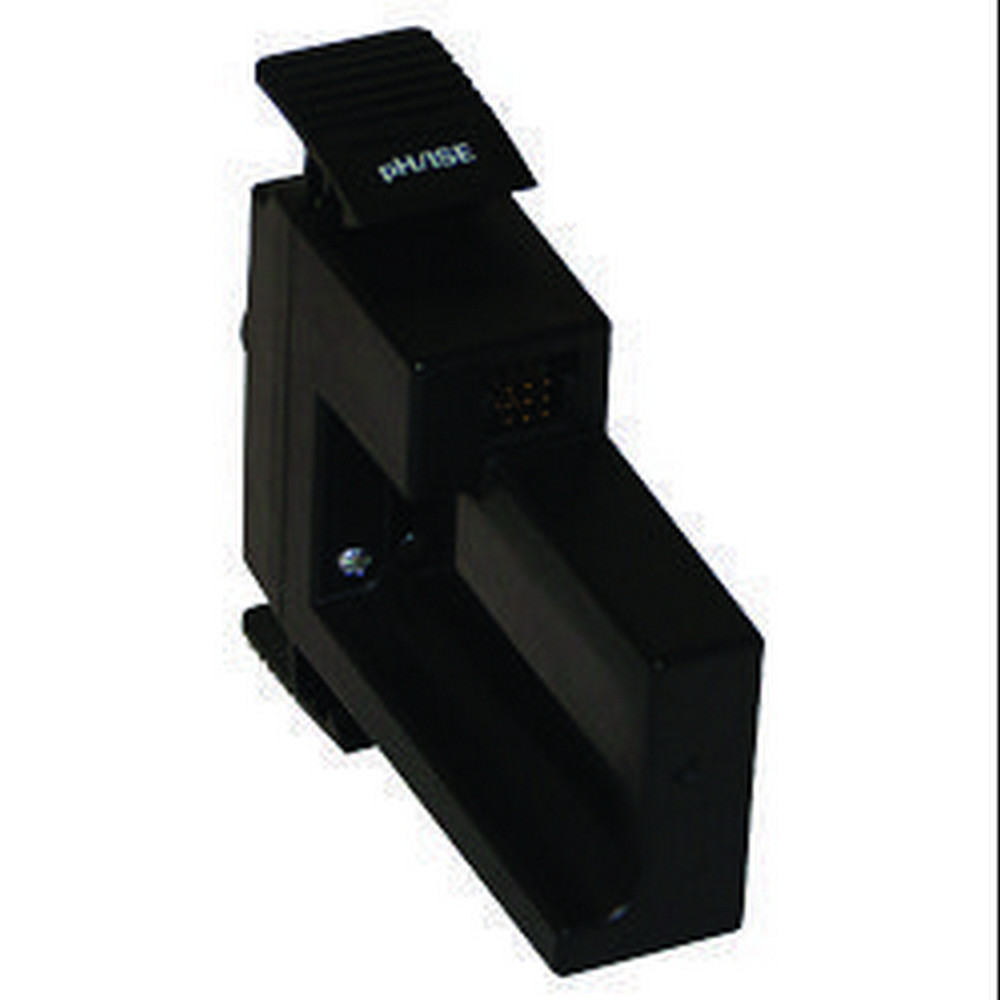

Versa Star pH / ISE Measurement Module, Thermo Orion

Add pH, ion concentration, mV, ORP and temperature measurement capabilities to your Thermo Scientific™ Orion™ Versa Star meter using the Thermo Scientific™ Orion™ Versa Star pH/ISE Measurement Module. Each Orion™ Versa Star meter has four channels that can be customized with interchangeable measurement modules. The Versa Star pH/ISE module offers up to six point pH and ISE calibrations and advanced ISE features including incremental techniques (single and double known addition and subtraction, analate addition and subtraction), low range stability and electrode ID with calibration verification.

Accuracy (pH): ±0.002 pH

Accuracy (ISE): ±0.2 mV or ±0.05 of reading, whichever is greater

Accuracy (mV): ±0.2 mV or ±0.05% of reading whichever is greater

Advanced ISE Functions: Timed endpoint, linear point to point, non-linear selectable auto-blank, low concentration range stability, incremental techniques including single known addition and subtraction, double known addition and subtraction, single analyte addition and subtraction

Accuracy (Temperature): ±0.1°C

Alarm Output: Set point alarm, high/low limit alarm, calibration due alarm

Calibration: 1 point (mV mode)

Calibration Points: (ISE) 1 to 6

Calibration Points: (pH) 1 to 6

Calibration Points: 1 point relative mV (RmV) mode, 1 point ORP mode

Inputs: BNC (pH or ISE), 8-pin Mini-DIN (temperature), reference pin-tip

Isopotential Point: 7.000pH (adjustable), 1.000 ISE (adjustable)

IP Rating: IP-54

Measurement Modes: pH, mV, relative mV (RmV), ORP or ion concentration (ISE) with temperature

Methods: 10 per channel with password protection

Model: Orion Versa Star pH/ISE/mV/RmV/ORP/Temperature Measurement Module

pH Range: -2.000 to 20.000

Probe Type: pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe (purchase separately)

Range (ISE): 0 to 19999 in ppm, M, mg/L, %, ppb or unitless

Range (mV): ±2000.0mV

Range (ORP): ±2000.0mV

Relative Humidity Range: 5 to 85 %, non-condensing

Resolution (ISE): Up to 4 significant digits

Resolution (mV): 0.1mV

Resolution (pH): 0.1, 0.01, 0.001

Resolution (Temperature): 0.1°C

Stability: Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting

Temperature (Metric) Range: -5°C to 105°;C

Temperature Probe Calibration: 1 point temperature offset calibration

Temperature (Metric) Operating: 5°C to 45°C

Temperature Selection: Manual or automatic with ATC temperature probe
