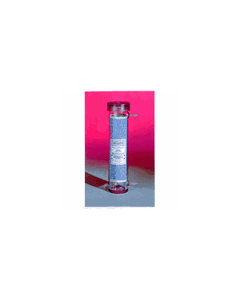

Drierite™ Laboratory Gas Purifier, WA Hammond Drierite

This Drierite™ Gas Purifier is specially designed for gas chromatography and other applications requiring dry, pure gas. It will dry, purify, and filter gases used for chromatography and spectrometry. The purifier is filled with Indicating Drierite™ and 5A Molecular Sieves for the removal of moisture, impurities, and particulates from gas lines. It is easy to attach using the compression type tube fittings common to most laboratory instruments. This unit is available filled with 500 cc of Indicating Drierite™ for applications that require only drying and filtering. Plastic coated mounting clips may be purchased separately

Note: Do not use this plastic column in the presence of vapors or liquids containing phosphate esters, synthetic lubricants, hydrocarbon solvents, methanol, acetone, lacquer solvents, or other organics.

• Construction: Column is molded polycarbonate. Desiccant supports and coil spring are stainless steel. Polycarbonate cap is fitted with o-ring gasket. Drierite™ is held firmly in place between felt filters.
• Dimensions: 2 5/8" x 11 3/8"
• Max working pressure: 100 psig
• Connections: 1/8" stainless steel male tube fittings
• Desiccant: 250cc Indicating DRIERITE and 250cc 5A Molecular Sieves
• Water capacity: 25 grams
• Recommended flow rate: up to 300 liters per hour for maximum efficiency
