Capacity Drierite® Indicating Laboratory Air and Gas Drying Unit, WA Hammond Drierite

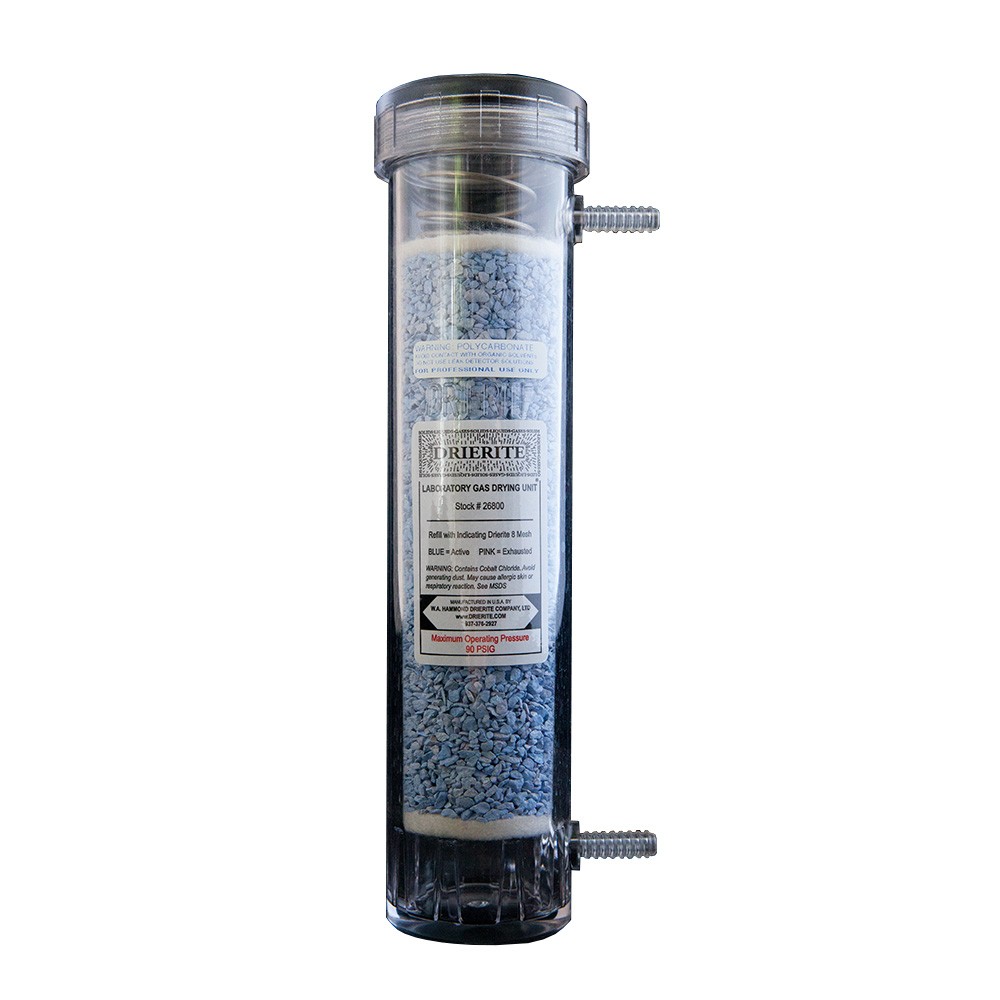

The DRIERITE Laboratory Air and Gas Drying unit is an all-purpose drier. This unit is suitable for most laboratory applications. It will dry air to a dew point of -100° F at atmospheric pressure or pressures up to 90 psig. A simple connection by rubber hose to the bottom inlet of the dryer provides an immediate flow of dry air or gas. This unit is also available with 1 /8 inch SS NPT fittings (Stock No. 26840). Plastic coated mounting clips may be purchased separately. Continuous flows are possible with two units in the line and the necessary valves so that the exhausted column may be refilled while the alternate column remains in use.

Note: Do not use this plastic column in the presence of vapors or liquids containing phosphate esters, synthetic lubricants, hydrocarbon solvents, methanol, acetone, lacquer solvents, or other organics.

The Laboratory Gas Drying Unit can be used anywhere to provide dry air or gas for applications such as: blanketing, sample preparation, instrument protection, reaction mixtures, purging, vacuum release, venting with dry air.
